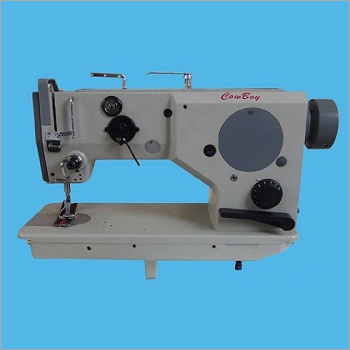

Extra Heavy Duty Zig Zag Sewing Machine
2000.00 - 20000.00 USD ($)/Set
Product Details:
- Supply Ability : 1-500 Set Per Week
- Click to view more
X
Price And Quantity
- 2000.00 - 20000.00 USD ($)/Set
- 1 Set
Trade Information
- 1-500 Set Per Week
- 1-2 Week
Product Description
Technical specification
| Max. Sewing Speed: | 800 rpm |
| Presser Foot Lift: | 20mm (by pneumatic foot lift) |
| Needle System: | 794 # 160 – 250 |
| Stitch Length: | 0-10mm |
| Max. zigzag width: | 12 mm |
| Working space: | 320mm (length) x185mm( High) |
| Packing size: | 760x480x620MM, 77KGS |
| Hook Type: | KSP-204 Large Barrel shuttle hook |
| Needle bar stroke: | 56 mm |
| Max. Thread size | V277,Tex 400 or 1300dx3 |
| Bobbin size: | Outside Dia. 24mm, Height 30.5mm |
| Take up stroke: | 96 mm |
| Recommended motor: | Minimum 0.75 kW |
| Tariff code (HS code): | 8452290000 |
